Compare: Wedge Welders

Scroll left or right to view all items. Drag and drop products to rearrange.

No Results Found

Reset All Filters

Pro-Wedge Model VM-20

  • Model Number: VM20/A
  • Welder Weight: 27 lbs (12.25 kg)
  • Shipping Weight: 45 lbs (20 kg)
  • Dimensions: 17.5 x 11.75 x 12.5" (44.5 x 30 x 31.75 cm)
  • Temperature Range: Ambient - 860° F (450° C)
  • Weld Width: 1.25" - 4" (31.75 - 80 mm) Dual or Single
  • Weld Type: Overlap, Prayer, and others
  • Travel Speed: 0 - 70 ft/min (0 - 21.2 m/min)
  • Material Range: HDPE, LLDPE, PVC, PP
  • Thickness Range: 12 - 120 mil (.3 - 3 mm)
  • Voltage: 120 or 240 VAC
  • Consumption: 1800W, 15A @ 120V, 7.5A @ 240V

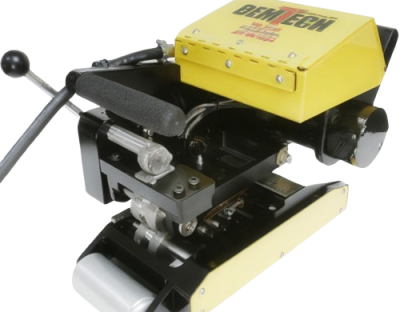

Pro-Wedge Model XL

  • Model Number: 500-0100/A
  • Welder Weight: 52 lbs (23.5 kg)
  • Shipping Weight: 66 lbs. (30 kg)
  • Dimensions: 16 x 11 x 12" (40.6 x 28 x 30 cm)
  • Temperature Range: Ambient - 860 °F (460 °C)
  • Weld Width: 2" (50 mm) Dual or Single
  • Weld Type: Overlap
  • Travel Speed: 0 - 20 ft/min (0 - 6 m/min)
  • Material Range: HDPE, LLDPE
  • Thickness Range: 40 - 120 mil (1 - 3 mm)
  • Voltage: 100 - 250 VAC (Auto-switching)
  • Consumption: 1400W, 6 - 13A

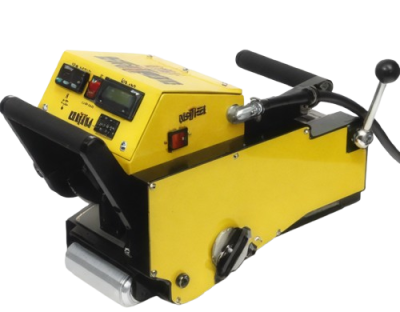

Pro-Wedge Model 3XL

  • Model Number: 500-0100/3XL
  • Welder Weight: 60 lbs (27.2 kg)
  • Shipping Weight: 95 lbs. (43 kg)
  • Dimensions: 26 x 17 x 17" (66 x 43 x 43 cm)
  • Temperature Range: Ambient - 850° F
  • Weld Width: 2" (50mm) Dual or Single
  • Weld Type: Overlap
  • Travel Speed: 0 - 47 ft/min (0 - 14 m/min)
  • Material Range: HDPE, LLDPE
  • Thickness Range: 40 - 120 mil (1 - 3 mm)
  • Voltage: 230 VAC, Single Phase
  • Consumption: 3000W, 13A
