Compare: Extrusion Welders

Scroll left or right to view all items. Drag and drop products to rearrange.

No Results Found

Reset All Filters

Pro-X Extrusion Welder

  • Model Number: 600-0100/A
  • Welder Weight: 29 lbs (13 kg)
  • Shipping Weight: 65 lbs (29.5 kg)
  • Dimensions: 30 x 9 x 11" (76.2 x 22.8 x 27.94 cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 9 lbs (4 kg) Per Hour
  • Output with 5mm: Up to 12 lbs (5.5 kg) Per Hour
  • Material Range: HDPE, LLDPE, PP, PE
  • Welding Range: 12 mil - 2" (.3 mm - 50mm)
  • Voltage: 240VAC, single phase
  • Consumption: 3550W, 14.6A
  • Packaging: Sturdy molded case w/ foam insert

Pro-X4 Extrusion Welder

  • Model Number: 600-0404/X4/A
  • Welder Weight: 21 lbs (9.5 kg)
  • Shipping Weight: 57 lbs (25.8 kg)
  • Dimensions: 30 x 9 x 11" (76.2 x 22.8 x 27.94 cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 10 lbs (4.5 kg)
  • Output with 5mm: 13.6 lbs (6.2 kg)
  • Material Range: PVC, PP, PE
  • Welding Range: 12 mil - 2" (.3 mm - 50mm)
  • Voltage: 230VAC, single phase
  • Consumption: 4430W, 19.2A

Pro-X5 Extrusion Welder

  • Model Number: Model 600-0105/X5/A
  • Welder Weight: 26 lbs. (11.8 kilos)
  • Shipping Weight: 65 lbs. (29.5 kilos)
  • Dimensions: 39.5 X 6 X 11” (98 X 15 X 27.5cm)
  • Weld Width: 12 mil to 2” (.3—50mm) thickness
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 9 lbs. (4 kilos) per hour
  • Output with 5mm: 13.5 lbs. (6.1 kilos) per hour
  • Material Range: PVC, PP, PE
  • Thickness Range: 12 mil to 2” (.3—50mm) thickness
  • Welding Range: 12 mil to 2” (.3—50mm) thickness
  • Voltage: 240VAC, single phase
  • Consumption: 3552W, 14.8 Amps @ 240VAC
  • Packaging: Sturdy molded case w/ foam insert

Pro-XME Extrusion Welder

  • Model Number: 605-0101XME/A
  • Welder Weight: 15lbs (6.8 kg)
  • Shipping Weight: 31 lbs (14 kg)
  • Dimensions: 24 x 6 x 10.5" (60.96 x 15.24 x 26.67cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 3.8 lbs (1.7 kg)
  • Output with 5mm: 5 lbs (2.3 kg)
  • Material Range: PVC, PP, PE
  • Welding Range: 20mil -2" (.5mm - 50mm)
  • Voltage: 230VAC, single phase
  • Consumption: 2975W, 13A

Pro-XMP Extrusion Welder

  • Model Number: 605-0102XMP/A
  • Welder Weight: 15lbs (6.8 kg)
  • Shipping Weight: 31 lbs (14 kg)
  • Dimensions: 24 x 6 x 10.5" (60.96 x 15.24 x 26.67cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 3.8 lbs (1.7 kg)
  • Output with 5mm: 5 lbs (2.3 kg)
  • Material Range: HDPE, LLDPE, PVDF, PVC, PP, PE
  • Welding Range: 20mil -2" (.5mm - 50mm)
  • Voltage: 230VAC, single phase
  • Consumption: 2975W, 13A
  • Packaging: Sturdy molded case w/ foam insert

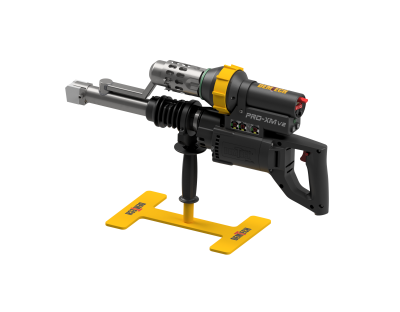

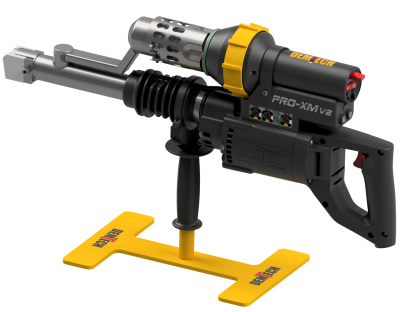

Pro-XM Extrusion Welder

  • Model Number: 605-0100/A
  • Welder Weight: 14.9 lbs (6.7 kg)
  • Shipping Weight: 35 lbs (15.9 kg)
  • Dimensions: 24 x 4.5 x 12" (60.96 x 11.4 x 30.48 cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 3.8 lbs (1.7 kg)
  • Output with 5mm: 5 lbs (2.3 kg)
  • Material Range: PVC, PP, PE
  • Welding Range: 40 mil - 2" (1mm - 50 mm)
  • Voltage: 230 VAC, Single Phase
  • Consumption: 3150W, 13.6A

3007CS Extrusion Welder

  • Model Number: A-3007CS/A
  • Welder Weight: 17 lbs (7.8 kg)
  • Shipping Weight: 35 lbs (15.9 kg)
  • Dimensions: 22.5 x 5 x 13.5" (57.15 x 12.7 x 34.29 cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 6.2 lbs (2.8 kg)
  • Output with 5mm: 8.2 lbs (3.7 kg)
  • Material Range: PVDF, PVC, PP, PE
  • Welding Range: 12 mil - 2" (.3 mm - 50mm)
  • Voltage: 230 VAC
  • Consumption: 3500 - 3600W

2007CS-5 Extrusion Welder

  • Model Number: A-2007CS-5/A
  • Welder Weight: 12.8 lbs (5.8 kg)
  • Shipping Weight: 35 lbs (15.9 kg)
  • Dimensions: 21 x 5 x 13.5" (53.35 x 12.7 x 34.29 cm)
  • Rod Size: 4mm or 5mm
  • Output with 4mm: 3.75 lbs (1.7 kg)
  • Output with 5mm: 4.2 lbs (1.9 kg)
  • Material Range: PVDF, PVC, PP, PE
  • Welding Range: 12 mil - 2" (.3 mm - 50mm)
  • Voltage: 230 VAC
  • Consumption: 3500 - 3600W

A-Mini Extrusion Welder

  • Model Number: A-MINI.1/A
  • Welder Weight: 9.25 lbs (4.2 kg)
  • Shipping Weight: 28 lbs (12.7 kg)
  • Dimensions: 18.5 x 4 x 13" (45.72 x 10.16 x 33.02 cm)
  • Rod Size: 4mm only
  • Output with 4mm: 2.4 lbs (1.1 kg)
  • Output with 5mm: N/A
  • Material Range: PVDF, PVC, PP, PE
  • Welding Range: 12mil - 2" (.2mm - 50mm)
  • Voltage: 120 VAC ONLY
  • Consumption: 2200W
